3 Phase Isolation Transformer, 4 kVA-300 kVA

inquiry 1 Piece (MOQ)

Product Details

Customization:: Available

After-sales Service:: Online

Warranty:: 12 Month

Inquire Now Chat with Supplier

Xuzhou Zhongya Agri Machinery Co., Ltd.

Manufacturer/Factory & Trading Company



Diamond Member Since 2024Suppliers with verified business licenses

Audited SupplierAudited by an independent third-party inspection agency

Importers and ExportersThe supplier has import and export rights

Years of Export ExperienceThe export experience of the supplier is more than 10 years

Self-brandedThe supplier has 4 Self-brands, check the Audit Report for more information

Patents AwardedThe supplier had awarded 1 patents, you can check the Audit Report for more information

Find Similar Products





Product Parameter
Product Detail
Contact This Supplier

Three-phase isolation transformers are available to meet special voltage requirements, winding configurations, mounted terminals, unusual sizes and shapes, providing capacities up to 300 kVA. have been designing and building three-phase isolation transformers for over a decade and have supplied in some challenging applications.

Specification

Model	ATO-T-SG
Phase	3 phase
Capacity	4 kVA to 300 kVA
Primary Voltage	0V to 1140V (customized)
Secondary Voltage	0V to 1140V (customized)
Frequency	50Hz / 60 Hz
Winding Material	Aluminium/copper wire customized
Work Efficiency	≥95%
Insulation Resistance	≥50 MΩ
Electrical Strength	3000V AC/1 min
Noise	<35-65 dB (1 meter)
Insulation Grade	H level

Schematic Diagram

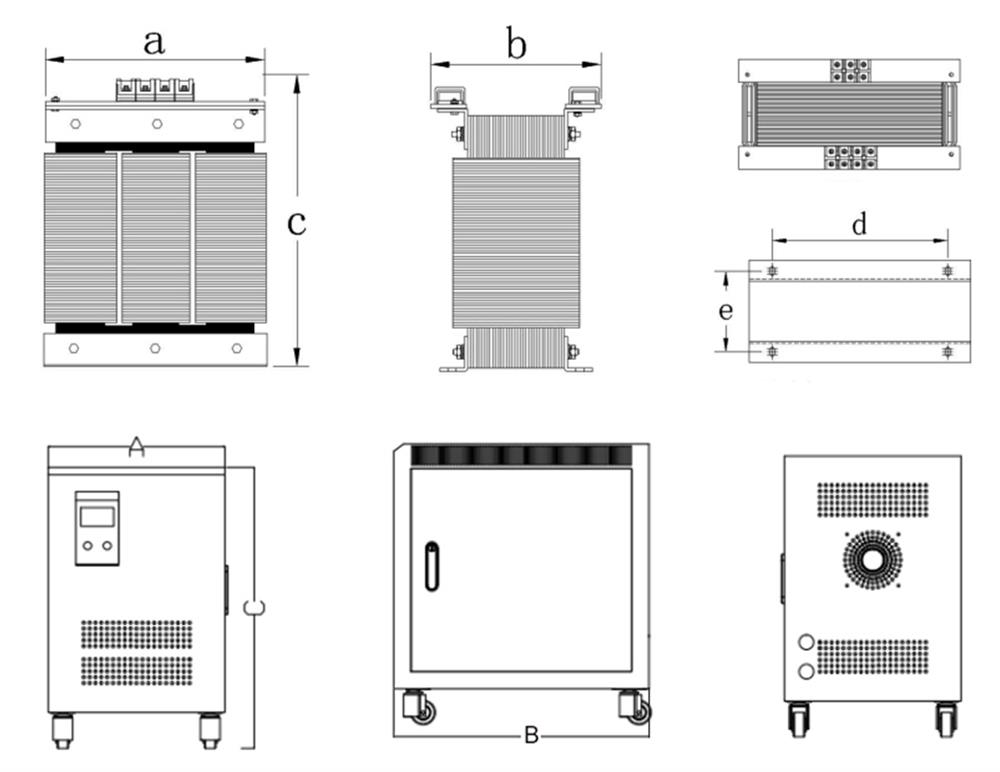

Dimension
