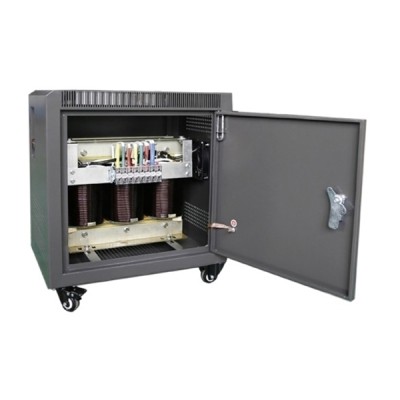

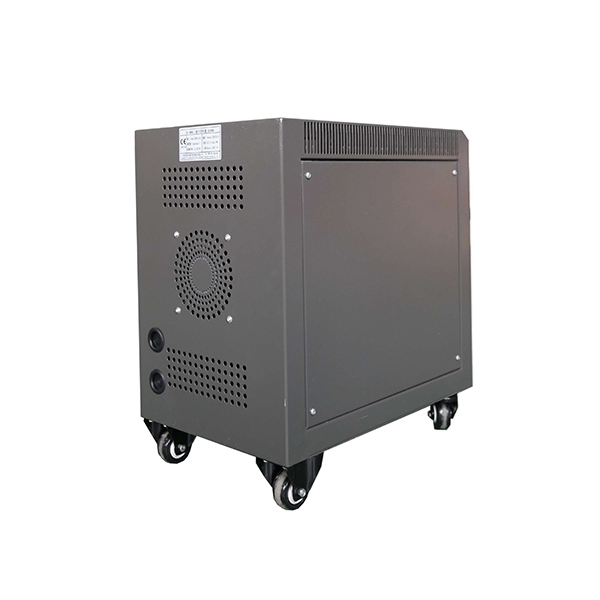

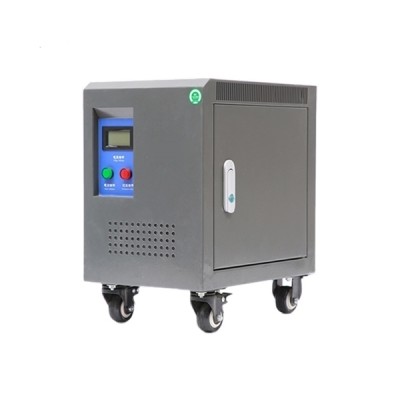

Split Phase Isolation Transformer, 1 kVA to 30 kVA

We are committed to producing high-quality split-phase isolation transformers with a capacity range up to 30KVA. Split-phase isolation transformers undergo strict quality control and testing to ensure compliance with international standards and specifications. Whether used for power transmission and distribution, or powering electronic equipment, our split-phase transformers provide a stable and reliable energy conversion solution.

Specification

Schematic Diagram

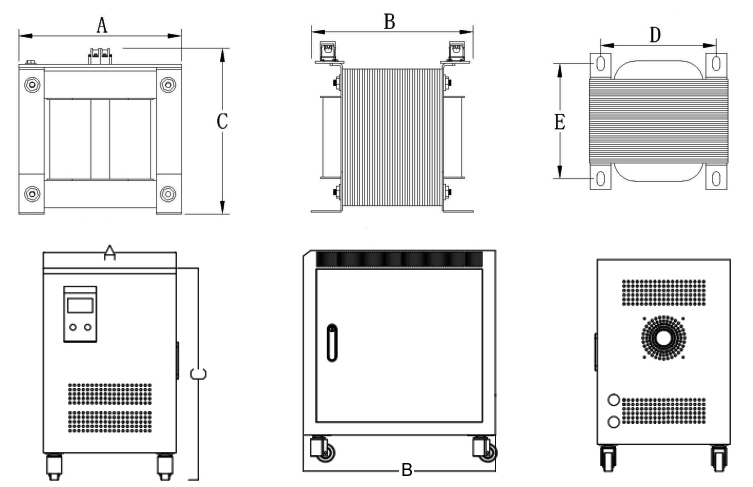

Dimension

Aluminium Wire Transformer Size

• Open type: a*b*c=240*240*260mm

• Mouting size: D*E=180*170mm (aperture: 20*10mm)

• Protected type: A*B*C=300*440*500mm

Copper Wire Transformer Size

• Open type: a*b*c=240*230*260mm

• Mouting size: 180*160mm (aperture: 20*10mm)

• Protected type: A*B*C=380*530*560mm

Split Phase Isolation Transformer Features

• Scientific and reasonable design, the voltage variation rate is controlled within 1-1.5%.

• Split phase isolation transformer is made of high quality new silicon steel sheet, which can effectively reduce iron loss and improve efficiency.

• The transformer is made of high temperature resistance and high quality wire, which greatly improves efficiency.

• Class H insulation, high temperature resistant insulation material, improves the high pressure strength, prolongs the service life.

• The isolation transformer has beautiful appearance design, large power density, small volume and high space utilization rate.
